Sanitary Cross Flow Cell

We carry ½, ¾”, ” and 1″ Sanitary Transmission Cross Flow Cells with adjustable path lengths in a variety of construction materials (316 SS, Titanium, Hastelloy C-276, or another material per customer specification).  The flow cells are equipped with sanitary flanges for easy integration into process pipelines.

We also provide 3-A Sanitary Transmission Cross Flow Cells designed specifically for the dairy industry. These can be equipped with UV-VIS or NIR optics and offer a high-performance inline process spectroscopy accessory designed specifically for hygienic environments. Each flow cell is 3-A certified.

The spectral properties of a sample can be measured when used in conjunction with our Optical Interface Couplers (OICs) and our PX2 photometer via SMA-905 connections.

Contact CST for custom sizing options.

  • Standard Specifications

    ½” Cross Flow Cell – Part #:  3006-A1-CDE

    • Path Length: Adjustable,  0.1 – 1.5 cm
    • Body Material: 316 Stainless Steel (standard)
    • Pressure Rating: 250 psi

    1″ Cross Flow Cell – Part #:  3006-A0-CDE

    • Path Length: Adjustable, 0.1 – 25.0 mm
    • Body Material: 316 Stainless Steel (standard)
    • Pressure Rating: 250 psi

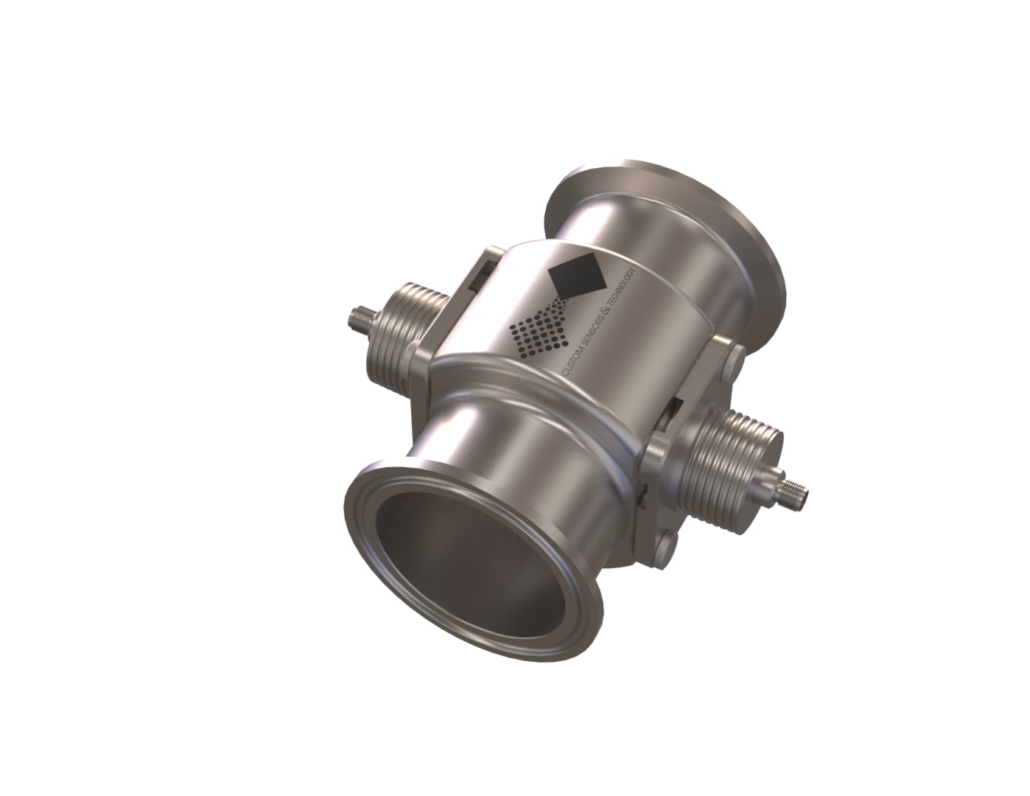

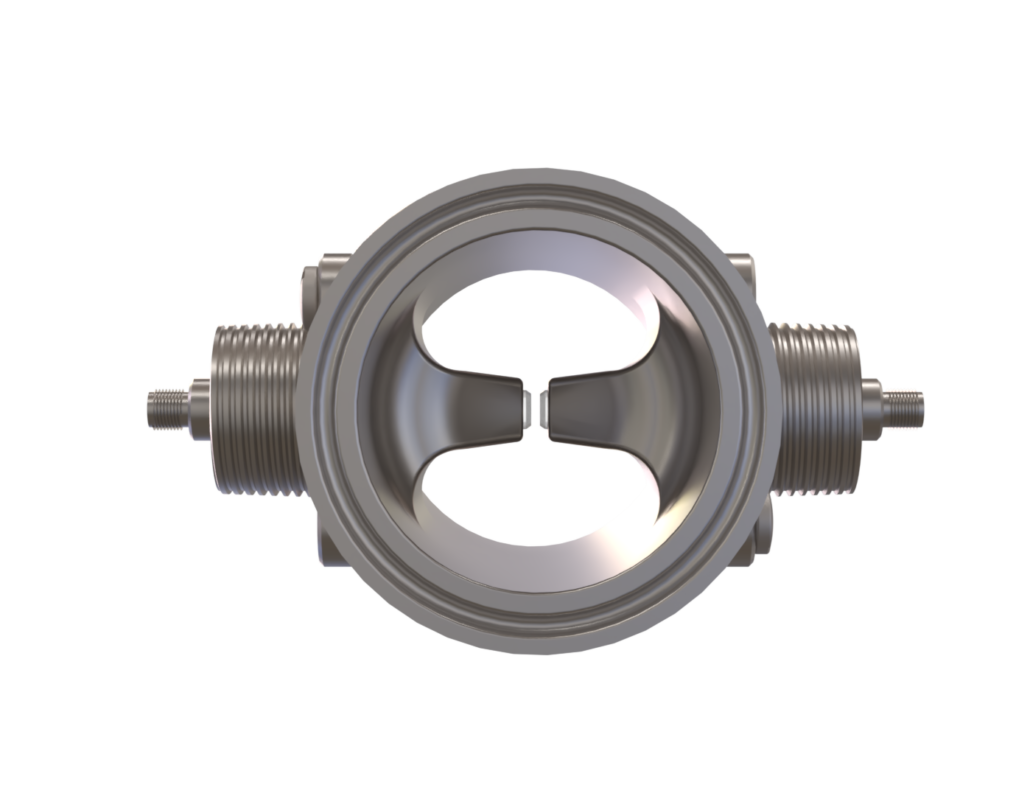

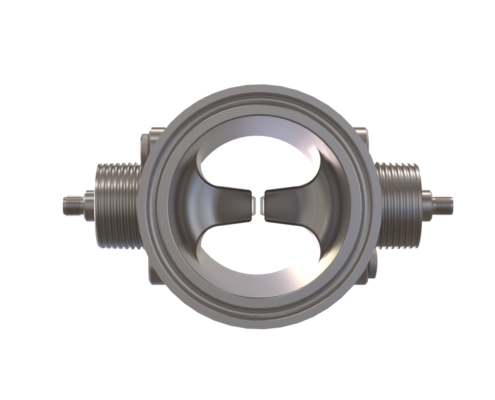

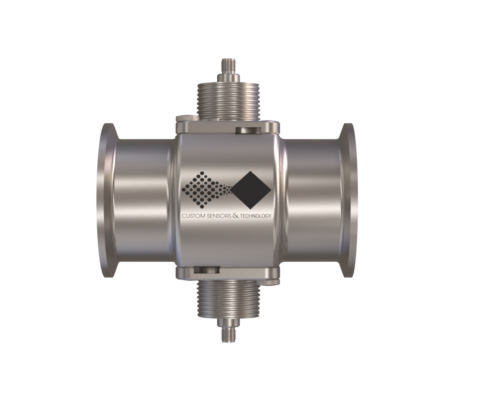

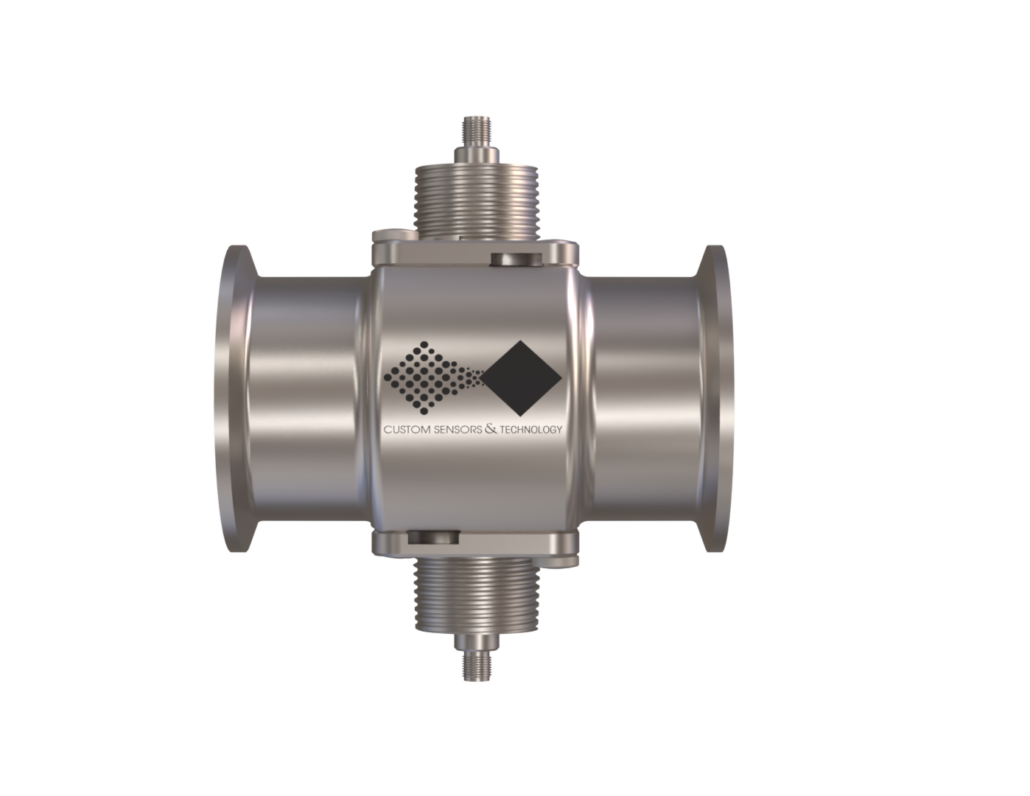

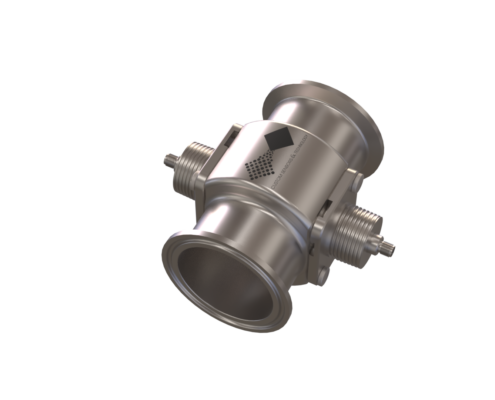

    ¼”, 2″, 2.5″, 3″, and 4″ 3-A Sanitary Cross Flow Cell – Part #:  3016 series

    • Path Length: Fixed, typically 1 mm
    • Body Material: 316 Stainless Steel (standard)
    • Pressure Rating: 200 psi
    • Optics: UV-Vis or NIR
    • Include 3/4″ MNPT threads on cell for connection to conduit
    • 3-A Certified
