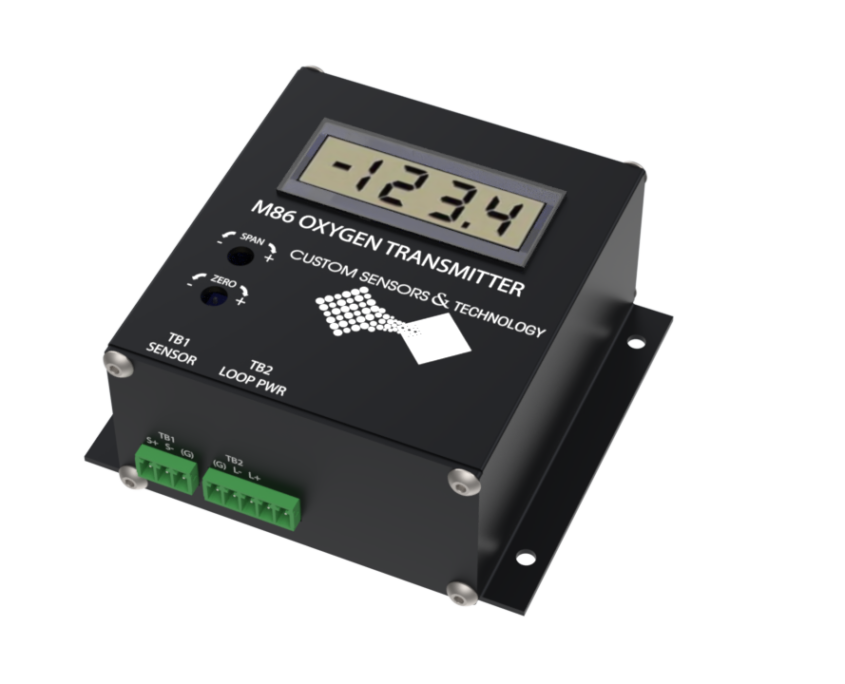

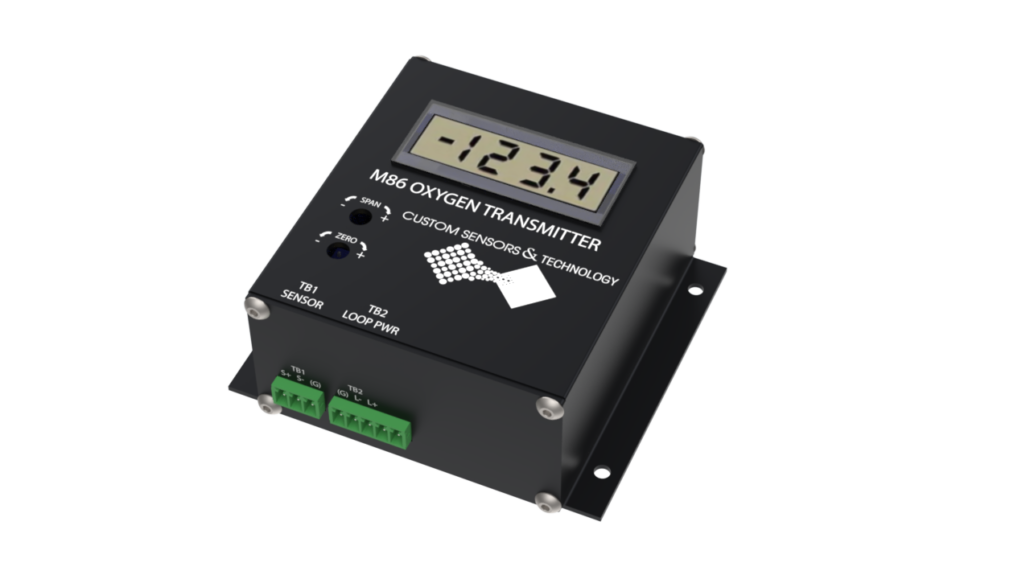

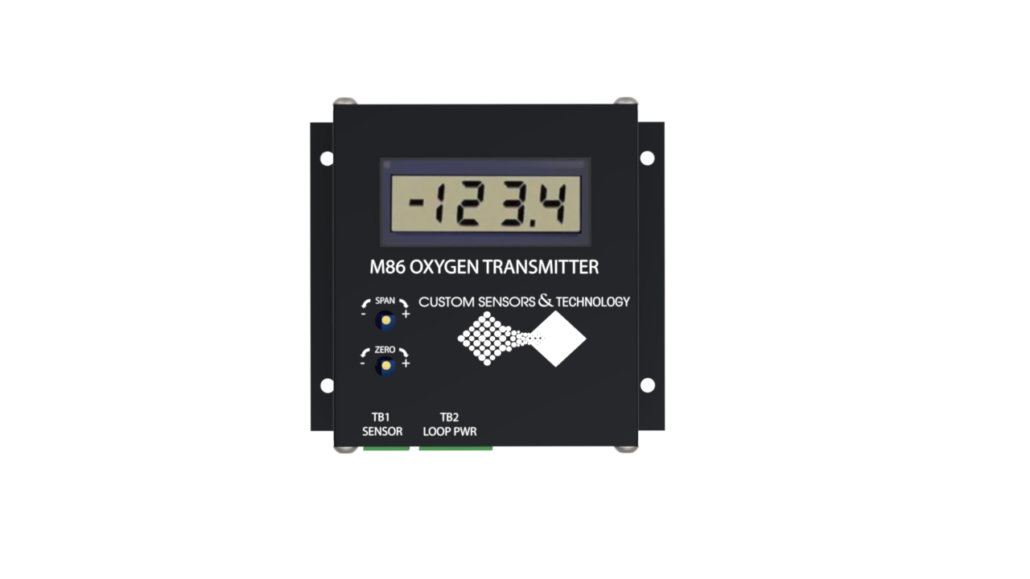

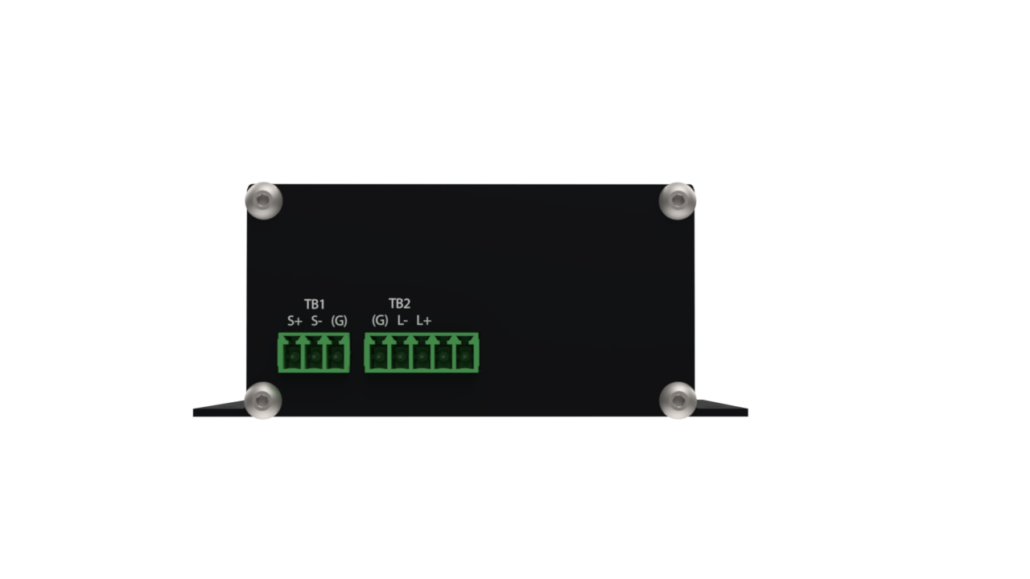

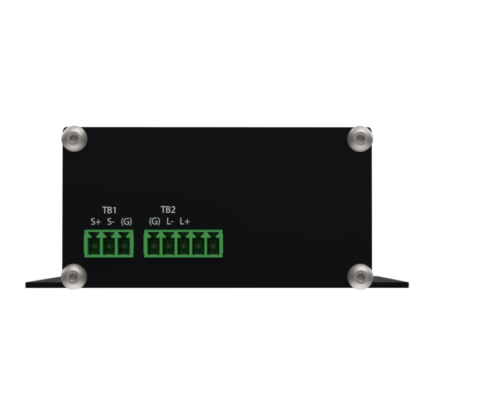

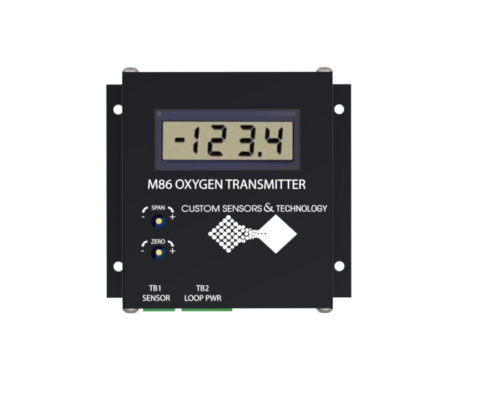

M86 Oxygen Transmitter

The M86 Oxygen Transmitter is a versatile unit that detects oxygen concentration within a specified range. This transmitter was designed with ease of use in mind, and only offers two field settings: zero and span. The M86 can be packaged for GP, C1D1, or C1D2 electrical area classifications. It can be provided with or without a display. There are no alarms.

The M86 has replaced the M85 and M87.

  • Standard Specifications

    • Analog Loop Resistance: 500 Ohms, nominally at 24VDC
    • Analog Output: 4-20 mA, loop powered
    • Oxygen Range:

    Low: 0-2000 ppm
    Standard: 0-25%
    High: 0-100%

    • Power Consumption: 0.48 Watts
    • Power Requirements: 24VDC (9-32VDC)
