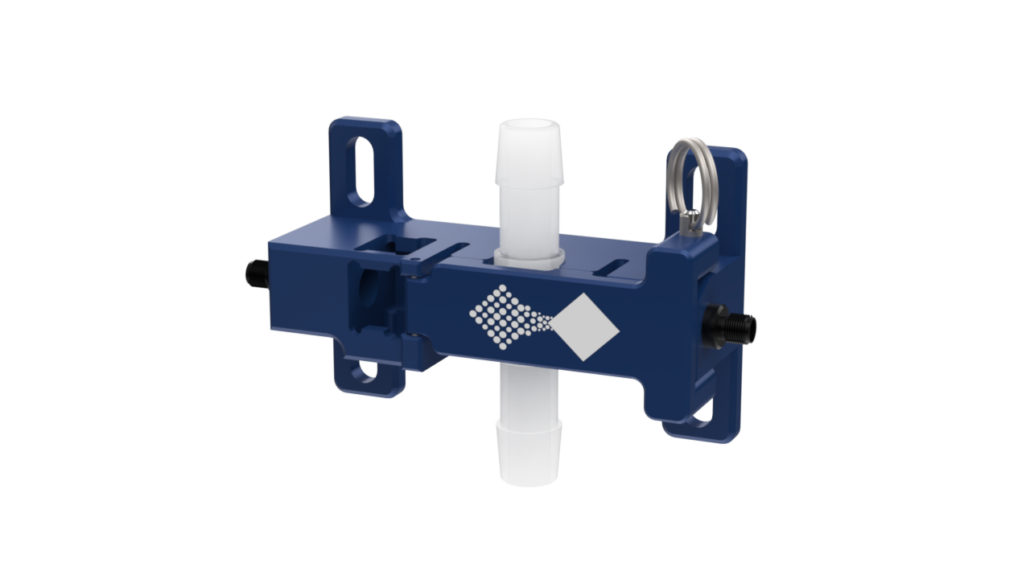

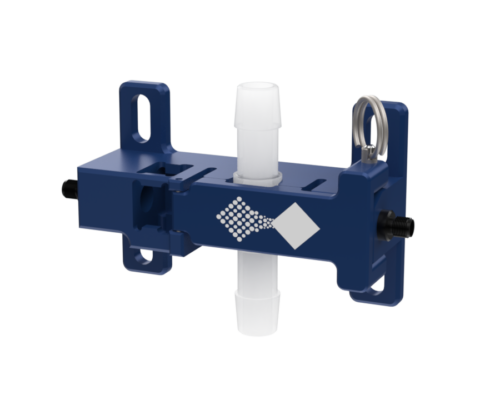

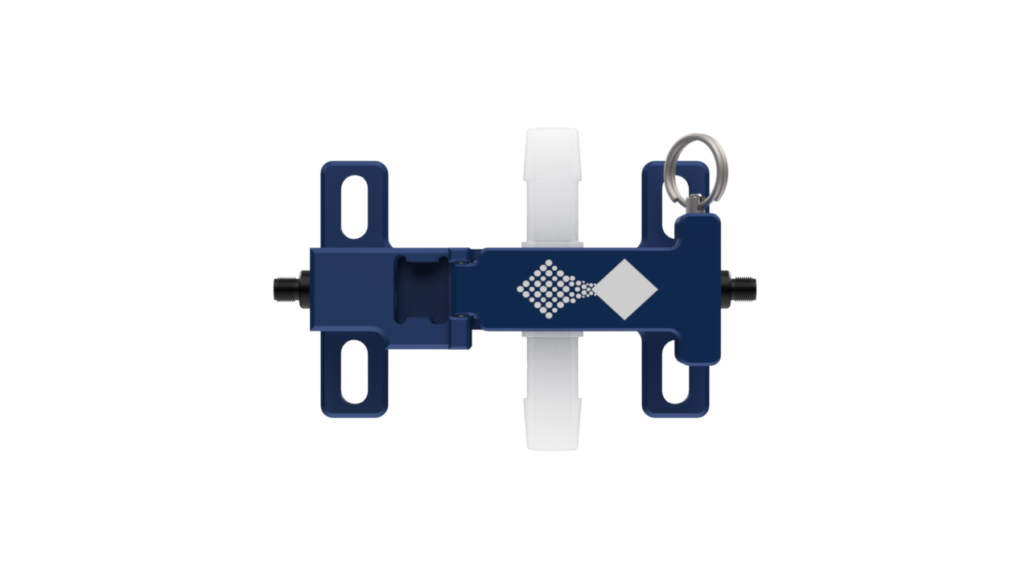

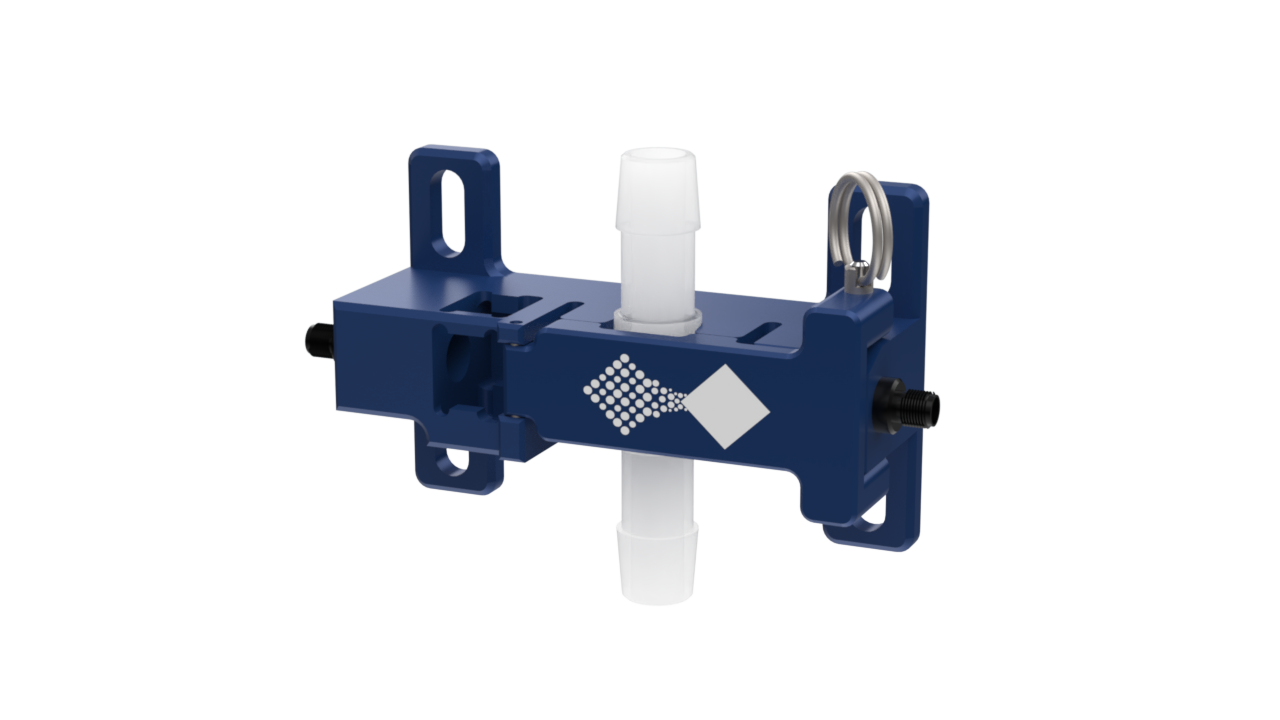

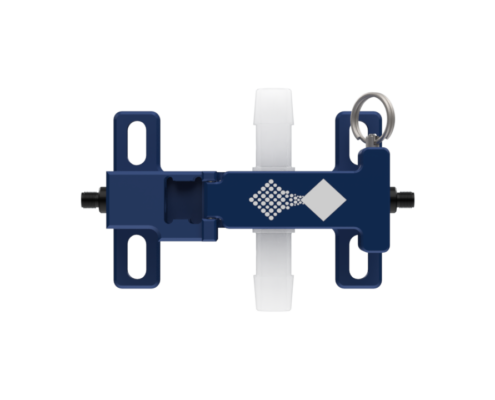

Process Flow Cell Holder

The Process Flow Cell Holder provides users with a simple means of integrating disposable flow cells into their process.  It features a slot for easily inserting a cuvette or standard into the light path for validation/calibrations purposes.  The Process Flow Cell Holder offers SMA-905 connections for fiber optic cables.  Available for flow cell path lengths of 1 mm, 2 mm, 5 mm, and 10 mm.  The disposable flow cells feature 1/2″ sanitary connections (other connection types available upon request).

Features:

  • Provides users with a simple means of integrating disposable flow cells into their process.
  • Standards or cuvettes can be easily inserted into the optical path of the flow cell to add a fixed amount of absorbance to your instrument’s baseline.
  • Photometric/spectrophotometric validation/calibration without shutting down the process or introducing gases or liquids into the process stream.
  • Reference materials can be liquid or solid NIST traceable standards.
  • Disposable Process Flow Cell features 1/2″ sanitary connections (others connection types and materials available upon request)
  • Disposable Process Flow Cell is made from USP Class VI polypropylene and uses silicone USP Class VI seals.
  • Standard Specifications

    Process Flow Cell Holder – Part #:  PFCH-AB-CDE-FG (standard specifications:  PFCH-00-000-10)

    • Path Length:  1 mm, 2 mm, 5 mm, 10 mm
    • Body Material:  USP Class VI Polypropylene, 316SS, Titanium, Hastelloy C 276, Monel
    • Seal Material:  USP Class VI Silicone
    • Pressure Rating:  150 psi
    • Temperature Rating:  50°C (122°F)

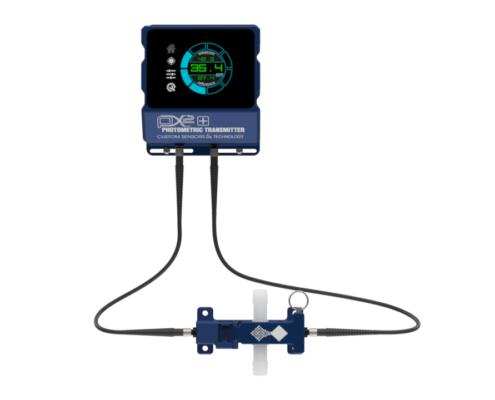

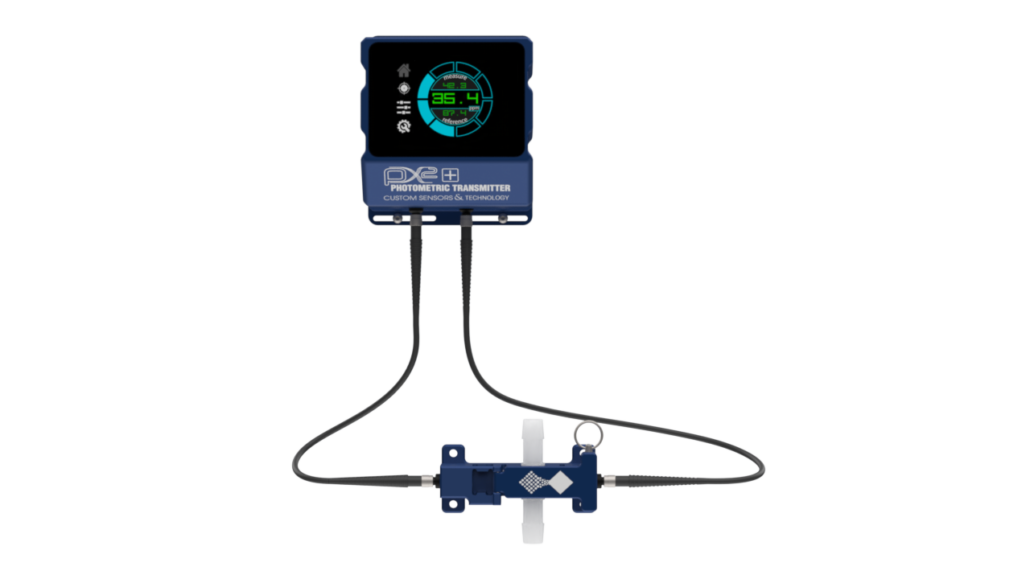

    • SMA-905 Connections for fiber optic cables
    • Wavelength Range:  UV-NIR (200-2400 nm)
